STK404-140S-E

audio power amplifier hybrid IC, ±78 V, 30 mA, 100W to 120W, insulated metal substrate technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~8.00

PartNumber:: STK404-140S-E

Brand:: Sanyo Semicon Device - SANYO | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Terry info@pese.co's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-07

From Other Seller

Part Number:STK404-140S-E
US $4.00 - 8.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

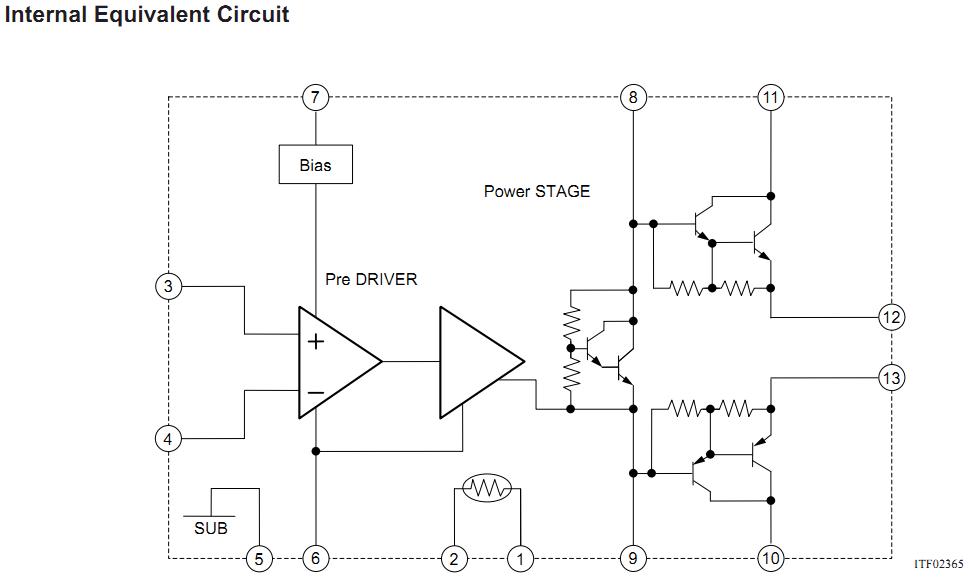

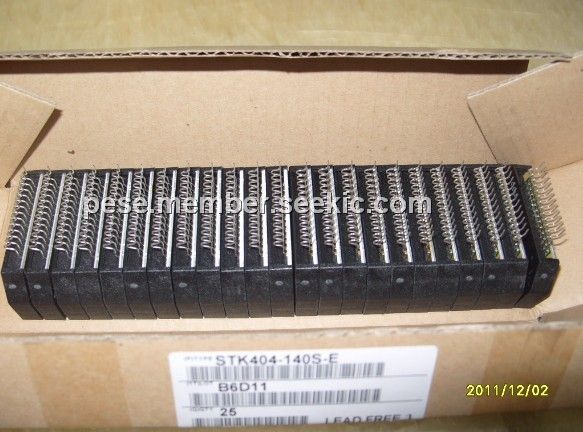

The STK404-140S-E is an audio power amplifier hybrid IC that consists of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYO’s unique insulated metal substrate technology (IMST). The adoption of a newly-developed low thermal resistance substrate allows the STK404-140S-E to be provided in miniature packages significantly more compact than earlier Sanyo products with similar specifications.

Parametrics

STK404-140S-E absolute maximum ratings: (1)Maximum supply voltage (No signal), VCC max(0): ±78 V; (2)Maximum supply voltage, VCC max: ±73 V when RL=6Ω; (3)Thermal sensor maximum voltage, Vp: 16 V Between pins 1 and 2; (4)Thermal sensor maximum current, Ip: 30 mA Between pins 1 and 2; (5)Thermal resistance, θ j-c: 1.2 °C/W Per power transist; (6)Junction temperature, Tj max: 150℃; (7)IC substrate operating temperature, Tc max: 125℃; (8)Thermal sensor operating temperature, Tp max: 145℃; (9)Storage temperature, Tstg: –30 to +125℃; (10)Allowable load shorted time, ts: 0.3 s.

Features

STK404-140S-E features: (1)Series of pin compatible power amplifiers ranging from 45W to 180W (10%/1kHz) devices. The same printed circuit board can be used depending on the output power grade; (2)Miniature packages: 30W to 40W (THD=0.4%, f=20Hz to 20kHz); 44.0mm × 25.6mm × 8.5mm; 50W to 80W (THD=0.4%, f=20Hz to 20kHz); 46.6mm × 25.5mm × 8.5mm; 100W to 120W (THD=0.4%, f=20Hz to 20kHz); 59.2mm × 25.5mm × 8.5mm; (3)Output load impedance: RL=6Ω; (4)Allowable load shorted time: 0.3 seconds; (5)Built-in thermal protection circuit; (6)Supports the use of standby, muting, and load shorting protection circuits.
