Product Summary
The ADM6999G is a supervisory circuit providing power supply monitoring and watchdog timing for microprocessor systems.
Parametrics
ADM6999G absolute maximum ratings: (1)VCC: –0.3 V to +6 V; (2)All Other Inputs: –0.3 V to VCC + 0.3 V; (3)Power Dissipation 8-Pin DIP: 500 mW; (4)θJA, Thermal Impedance: +120℃/W; (5)Power Dissipation 16-Pin SOIC: 375 mW; (6)θJA, Thermal Impedance: +110℃/W; (7)Power Dissipation 8-Pin Cerdip: 500 mW; (8)θJA, Thermal Impedance: +125℃/W; (9)Operating Temperature Range: –40 to +85℃; (10)Storage Temperature Range: –65 to +150℃; (11)Lead Temperature (Soldering, 10 secs): +300℃.
Features
ADM6999G features: (1)Superior Upgrade for MAX698/MAX699; (2)Guaranteed RESET Assertion with VCC = 1 V; (3)Low 0.6 mA Supply Current; (4)Precision 4.65 V Voltage Monitor; (5)Power OK/Reset Time Delay; (6)Watchdog Timer; (7)Minimum Component Count; (8)Performance Specified over Temperature.

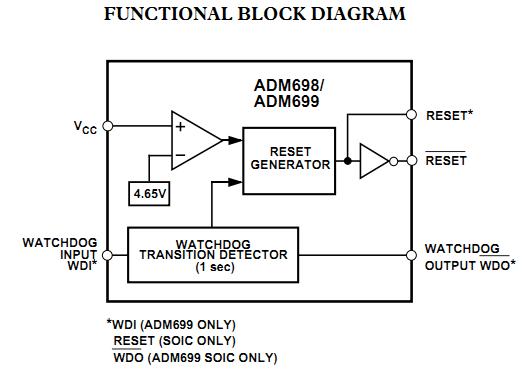

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM6999GA2T1 |
|
IC SWITCH CTRLR 10/100 128-FQFP |
Data Sheet |
Negotiable |
|
||||
|
ADM6999GX-A2-T-1 |
|
IC ETHERNET SW CTRLR 128-PQFP |
Data Sheet |
Negotiable |
|
||||
