Product Summary
The S87C196KB16 is a 16-bit microcontroller. The S87C196KB16 is a high performance member of the MCSE 96 microcontroller family. Intel’s CHMOS process provides a high performance processor along with low power consumption. To further reduce power requirements, the S87C196KB16 processor can be placed into Idle or Powerdown Mode.
Parametrics
S87C196KB16 absolute maximum ratings: (1)Ambient Temperature, Under Bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage On Any Pin to VSS: -0.5V to 7.0V; (4)Power Dissipation: 1.5W.
Features
S87C196KB16 features: (1)8 Kbytes of On-Chip ROM/OTP Available; (2)232 Byte Register File; (3)Register-to-Register Architecture; (4)28 Interrupt Sources/16 Vectors; (5)1.75 ms 16 x 16 Multiply (16 MHz); (6)3.0 ms 32/16 Divide (16 MHz); (7)Powerdown and Idle Modes; (8)Five 8-Bit I/O Ports; (9)16-Bit Watchdog Timer; (10)12 MHz and 16 MHz Available; (11)Dedicated 15-Bit Baud Rate Generator; (12)Dynamically Configurable 8-Bit or 16-Bit Buswidth; (13)Full Duplex Serial Port; (14)High Speed I/O Subsystem; (15)16-Bit Timer; (16)16-Bit Up/Down Counter with Capture; (17)Pulse-Width-Modulated Output; (18)Four 16-Bit Software Timers; (19)10-Bit A/D Converter with Sample/Hold; (20)HOLD/HLDA Bus Protocol; (21)Extended Temperature Available.

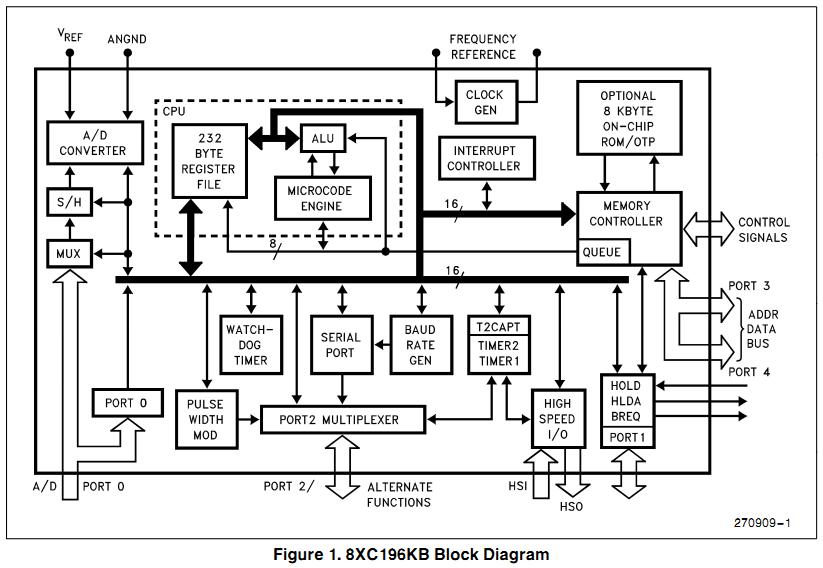

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S87C196KB16 |
|
IC MCU 16-BIT 5V 8K OTP 80-QFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S87C196KB16 |
|
IC MCU 16-BIT 5V 8K OTP 80-QFP |
Data Sheet |
Negotiable |
|
||||
|
