Product Summary
The xcs40-3pq208c is a field programmable gate array. The xcs40-3pq208c is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.
Parametrics
xcs40-3pq208c absolute maximum ratings: (1)supply voltage relative to GND, VCC: -0.5 to +7.0 V; (2)Input voltage relative to GND(2,3), VIN: -0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output(2,3), VTS: -0.5 to VCC +0.5 V; (4)Storage temperature (ambient), TSTG: -65 to +150 ℃; (5)Junction temperature, plastic packages, TJ: +125 ℃.
Features
xcs40-3pq208c features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORETM and LogiCORETM predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

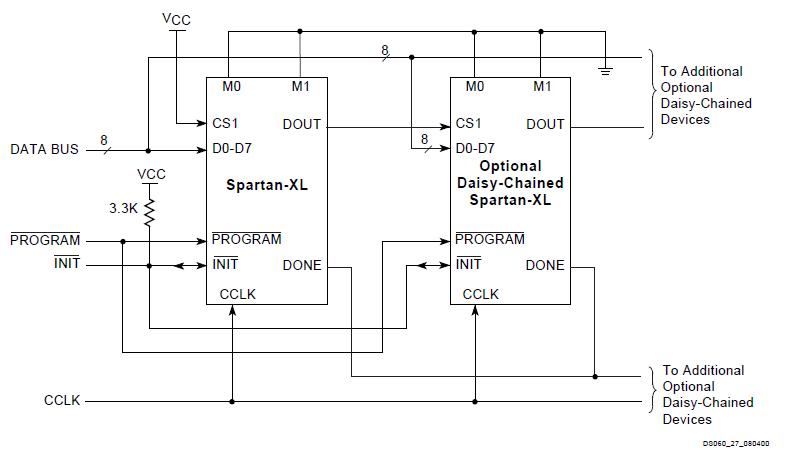

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XCS40-3PQ208C |
|
IC FPGA 5V C-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
XCS40 and XCS40XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XCS40-3BG256C |
|
IC FPGA 5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
|
XCS40-3PQ208C |
|
IC FPGA 5V C-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-3PQ208I |
|
IC FPGA 5V I-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-3PQ240C |
|
IC FPGA 5V C-TEMP 240-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS40-4BG256C |
|
IC FPGA 5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
